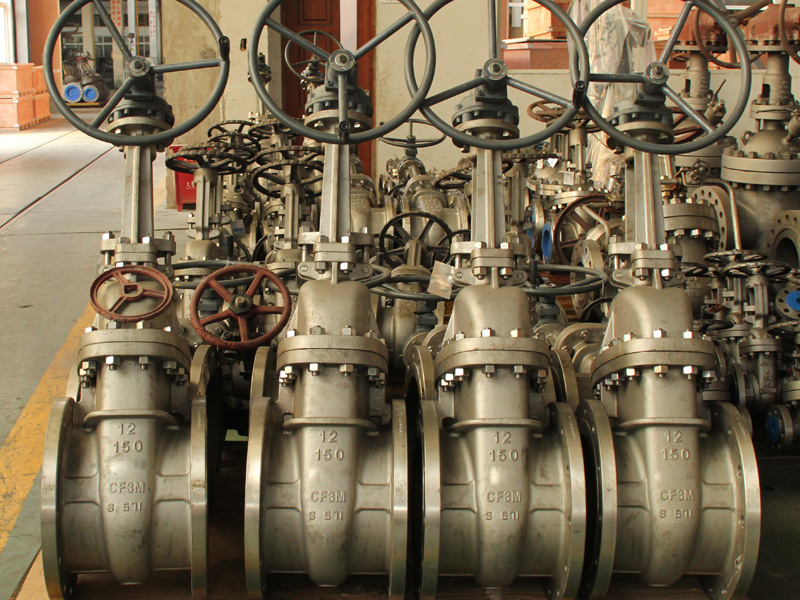

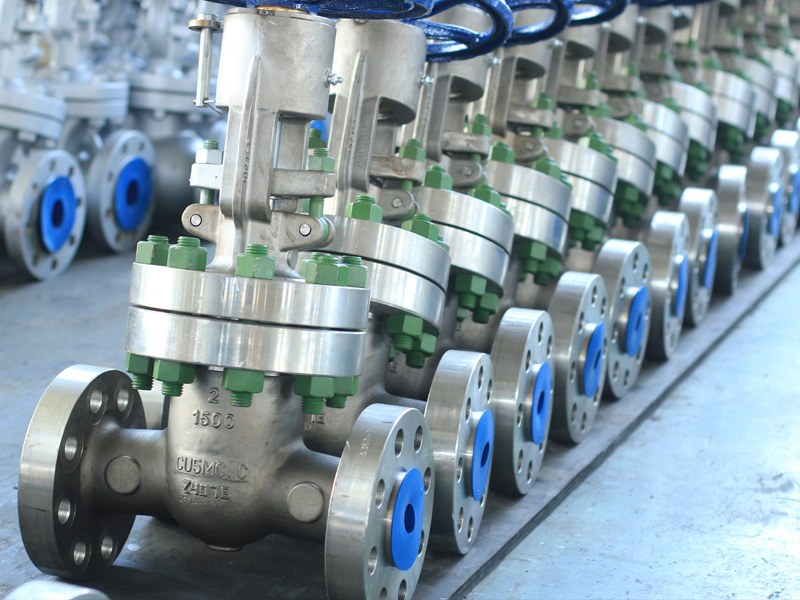

Stainless Steel Gate Valve

Med Stianless Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic
OnLine Service
whatsapp Skype Online PDF Download
first_page last_page
Description
Med Stainless Steel Gate Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds. Extensive base line laboratory testing (static and cycle testing) has been performed establishing critical design parameters necessary to achieve low emission sealing in the Med stem packing seal area and in the bonnet gasket sealing area, In-house testing procedure has been developed and is periodically performed to ensure that standard product design and manufacturing criteria consistently result in the Med Stainless Steel Gate Valve meeting a maximum of 100 ppm VOC leakage prior to shipment.
Med Stainless Steel Gate Valves are with main Features as below:
» SizeRanges: 1 1/2” through 48”
» Pressure Ratings: ANSI #150 to 2500
» Standards compliance: API 600, ASME B16.34 or equivalents
» Materials: CF8, CF8M, CF3, CF3M, SS304, SS316, SS304L, SS316L and etc.
» Ends Connections: Flanged(FF, RF, RTJ) to international standards
» OS&Y, Outside Stem and Yoke
» Metal-sealed(API Trim # 2, #10, #12 and etc.)
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port
