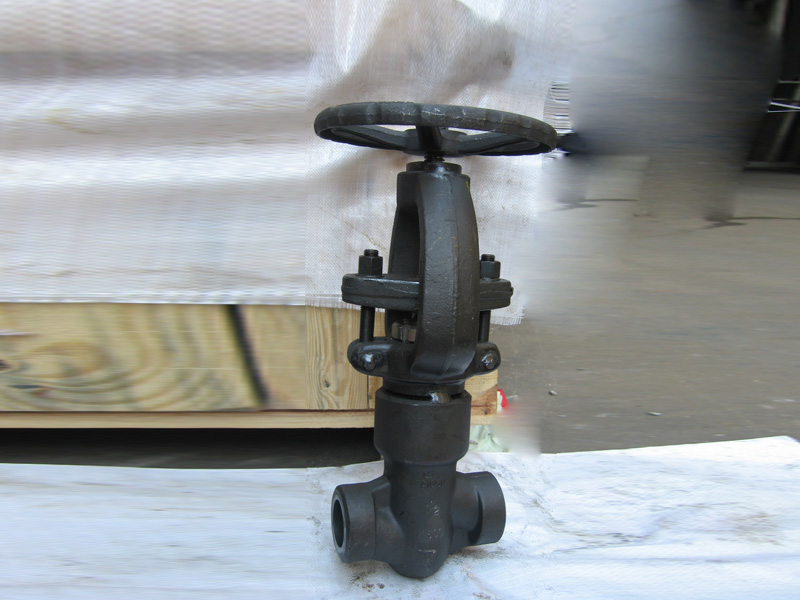

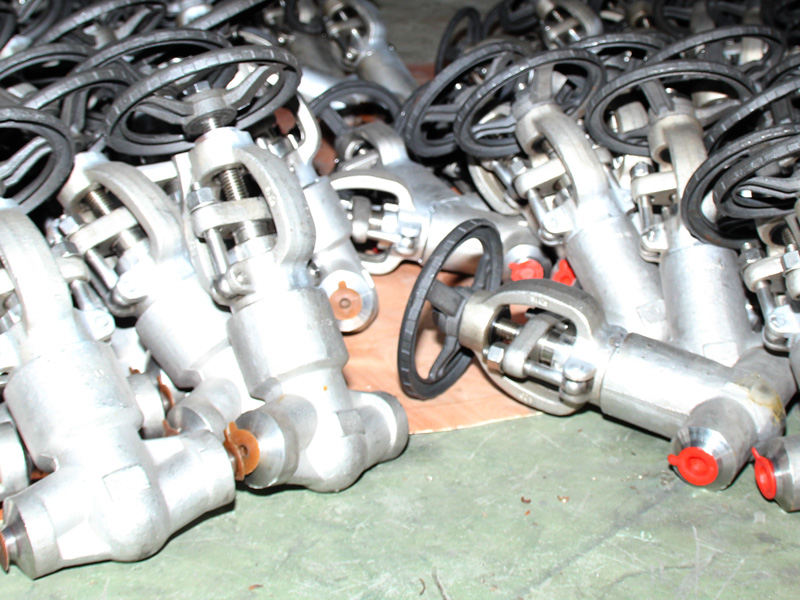

Med Pressure Seal Gate valves are intended for high pressure, high temperature applications in all types of fluid except where severe coking is a factor. The design and material selections provide excellent service in steam-generation stations, industrial chemical plants and thermal power plants. Most Pressure Sealed Gate Valves are offered in Forged Steel body designs. These options make the Med Pressure Seal product line an excellent choice for users with various application requirements.
Med Pressure Seal Gate Valves provide the most efficient flow passage and sealing features possible, resulting in significant weight savings, easy installation and in-line maintenance. Supplied with standard features as below:
» Standards Compliance: Design & Manufactured to API 602, ASME B16.34 or DIN3202 ◆ P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10 ◆ Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25 ◆ Threaded Ends to ASME B1.20.1
» Socket-weld Ends to ASME B16.11 ◆ Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» SizesRanges from 1/2” thru 2”
» Pressure Ratings from Class 600 to Class 2500, PN110 to PN420
» Structures in Pressure Sealed Union Cover
» Ends Connections in Flange, Threaded, Welded Ends and goove
» Body Materials available in Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Steel, Special Materials etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Electric / Pneumatic or Hydraulic Actuators
» Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
