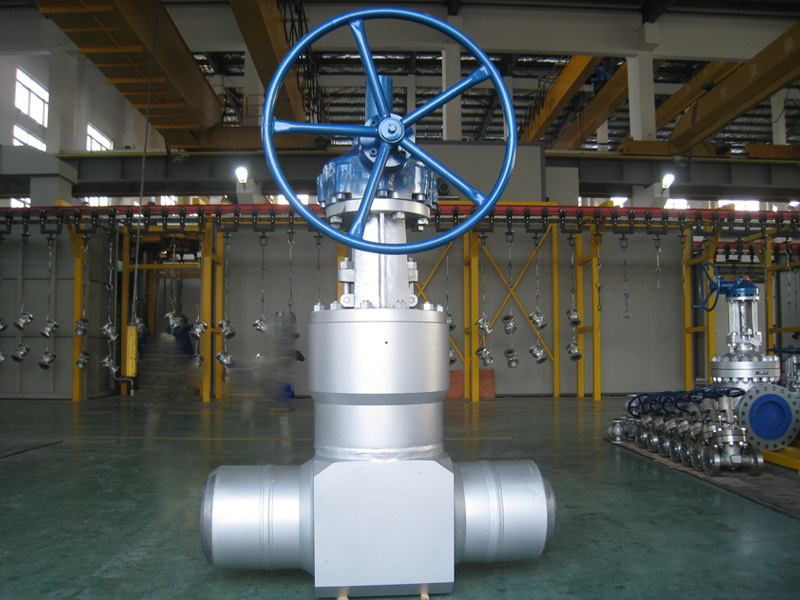

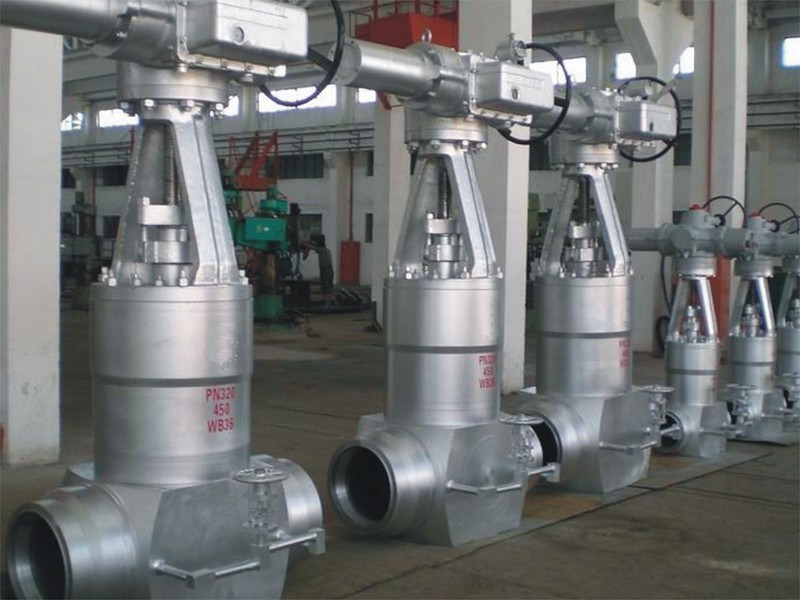

Forged Steel Gate Valve

Med Forged Seal Gate valves are intended for high pressure, high temperature applications in all types of fluid except where severe
OnLine Service
whatsapp Skype Online PDF Download
first_page last_page
Description
» Standards Compliance: Design & Manufactured to API 600, API 602, ASME B16.34 or DIN3202 ◆ P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10 ◆ Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25 ◆ Threaded Ends to ASME B1.20.1
» Socket-weld Ends to ASME B16.11 ◆ Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» Sizes Ranges from 1/2” thru 24”
» Pressure Ratings from Class 600 to Class 2500, PN110 to PN420
» Structures in Pressure Sealed Union Cover
» Ends Connections in Flange, Threaded, Welded Ends and goove
» Body Materials available in Cast or Forged Carbon Steel, Stainless Steel, Duplex Steel, Special Materials etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Gear Device, Electric / Pneumatic or Hydraulic Actuators
» Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
