Description

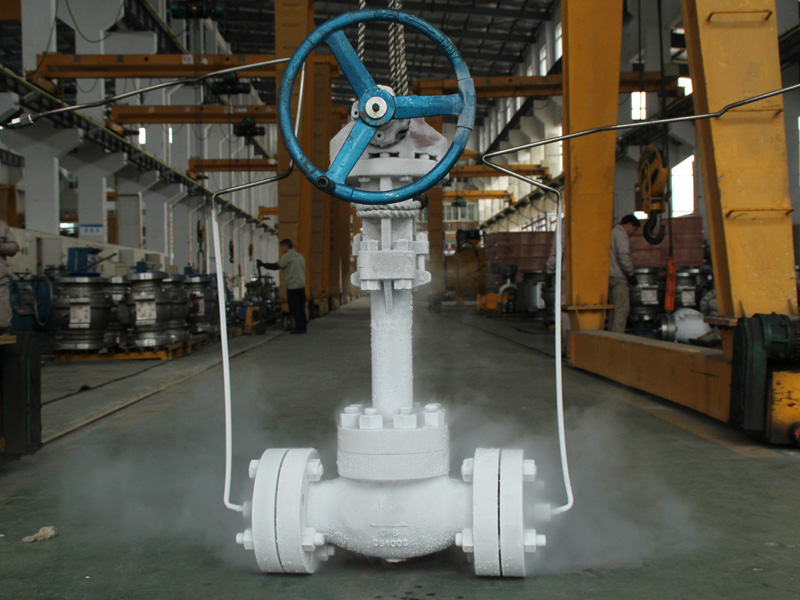

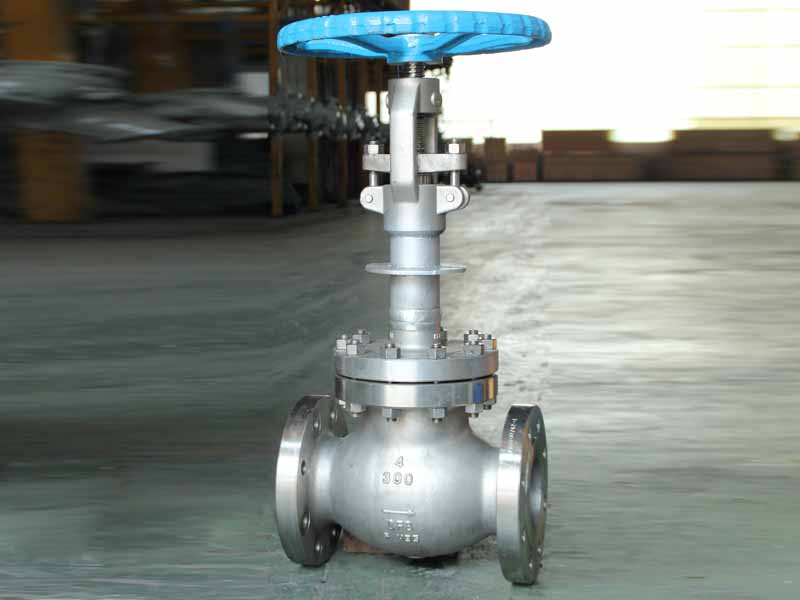

Med Cryogenic Globe Valves are designed and manufactured strictly to International Standards BS 1873, ASME B16.34 or DIN3202,During the processes of production, transportation, storage and usage of liquefied gases, countless technical problems can be experienced. Med cryogenic Globe valves are designed to assure safety and reliability under these critical conditions. All of Med cryogenic Globe valves are thoroughly cleaned and decreased. Afterwards the end ports are sealed to prevent contamination. This process is performed in an approved and designated clean room.
Featured with compact structure & Low emission service.
» Design & Manufactured to BS 1873, ASME B16.34 or DIN3202 ◆ P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10 ◆ Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25 ◆ Threaded Ends to ASME B1.20.1
» Socket-weld Ends to ASME B16.11 ◆ Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» Size Ranges from 1/2” thru 24”
» Pressure Ratings from Class 150 to Class 2500, PN16 to PN420
» Structures in Bolted or Pressure Sealed Union Cover, Bonnet or Stem Extension
» Ends Connections in Flanged, Threaded, Welded Ends and Grooved
» Body Materials available in Cast or Forged Low Carbon Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials upon request
» Trim Materials available in LF2, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Gear Device, Electric / Pneumatic or Hydraulic Actuators
» Optional Bypass system, Live Loading Packing & O-ring Seal available upon request.
